AirMMax AeroTube

Inquiry Now
Add to Card

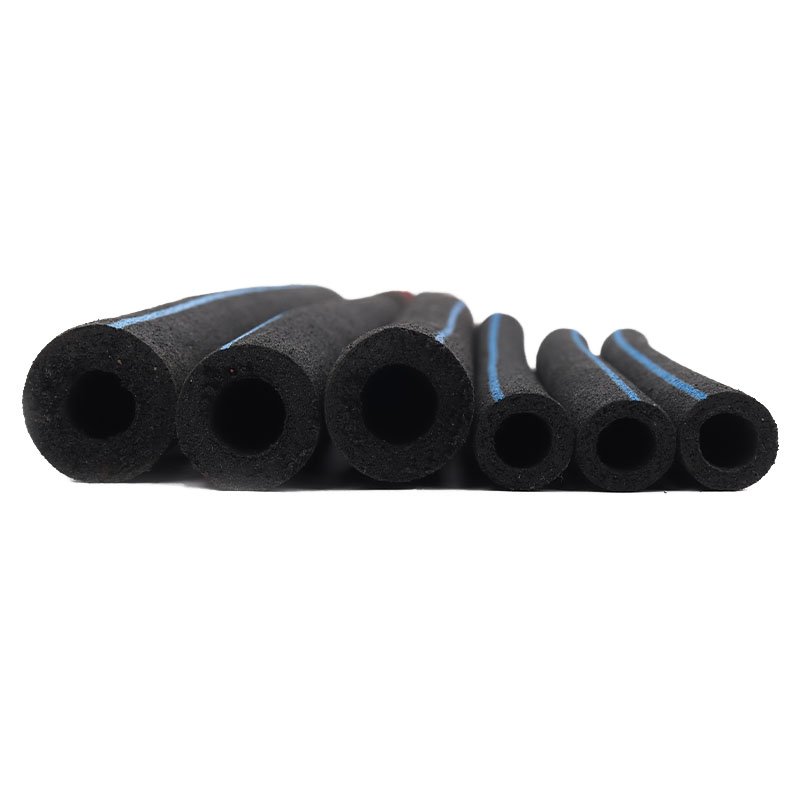

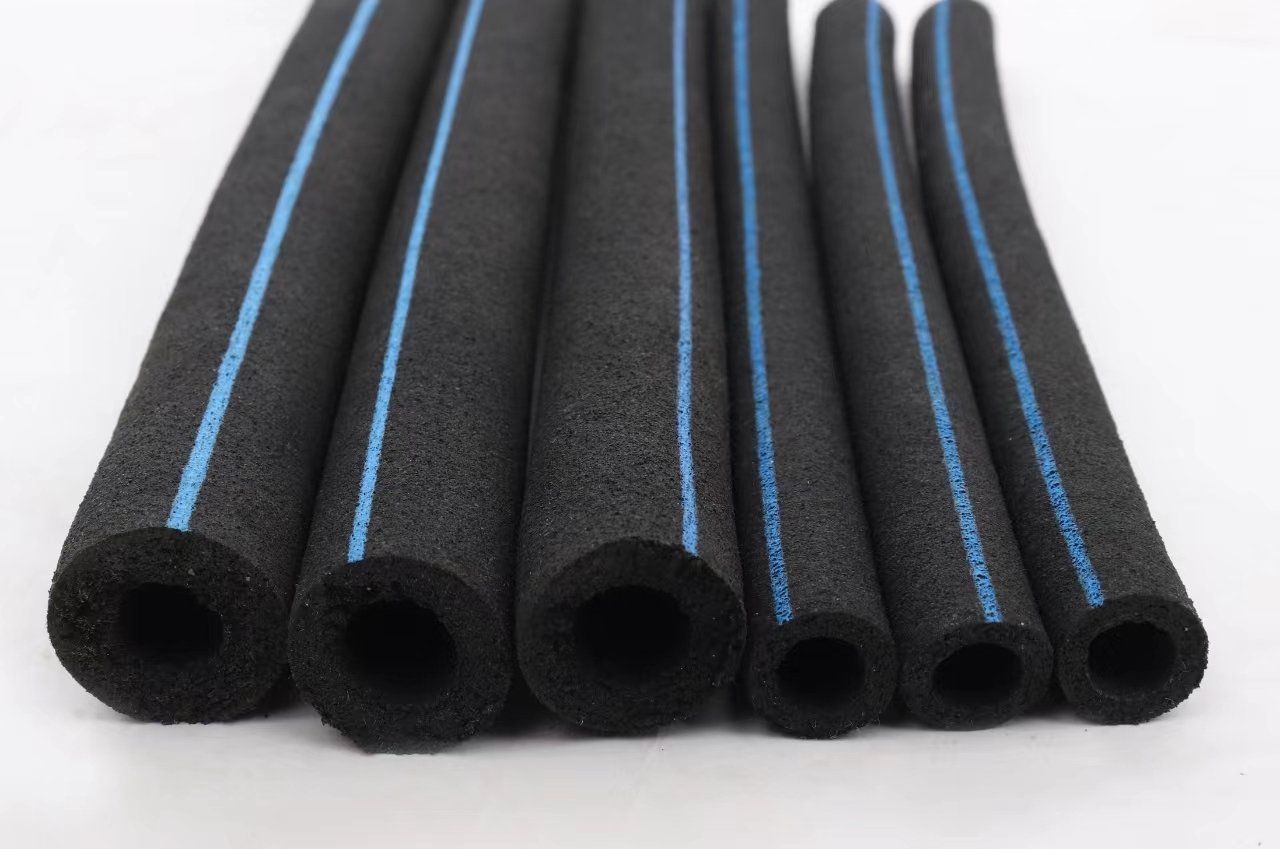

AeroTube Size

AirMMax manufacture various size of aerotube to meet high density shrimp and fish aquaculture aeration requirement.

Aerotube Size Table

AirMMax aerotube size table

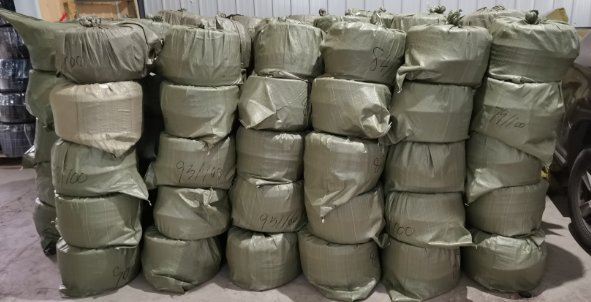

Model	Inner Diameter (mm)	Outer Diameter (mm)	Wall Thickness (mm)	Package (m/roll)
12*25 mm	12	25	6.5±0.5	100
16*25 mm	16	25	4.5±0.5	100
16*22 mm	16	22	3±0.5	100
12*20 mm	12	20	4±0.5	100
14*20 mm	14	20	3±0.5	100
13*19 mm	13	19	3±0.5	100
20*28 mm	20	28	4±0.5	100
10*16 mm	10	16	3±0.5	200
10*20 mm	10	20	5±0.5	100
30*40 mm	30	40	5±0.5	50

Size Description

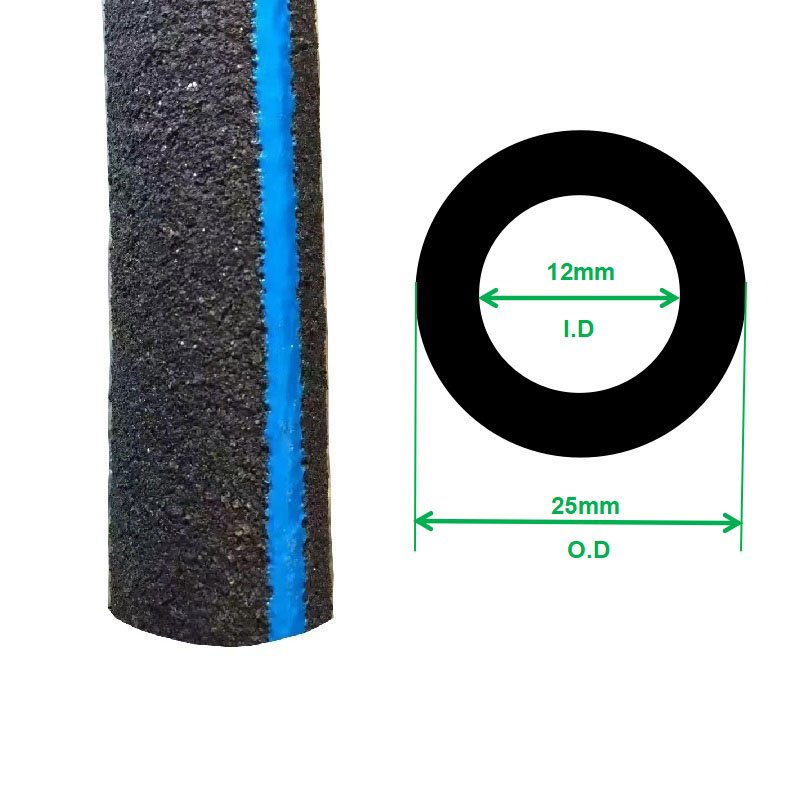

AirMMax 12*25 aerotube is aeration tube with size Inner Diameter (I.D) of 12mm and Outer Diameter (O.D) of 25mm.

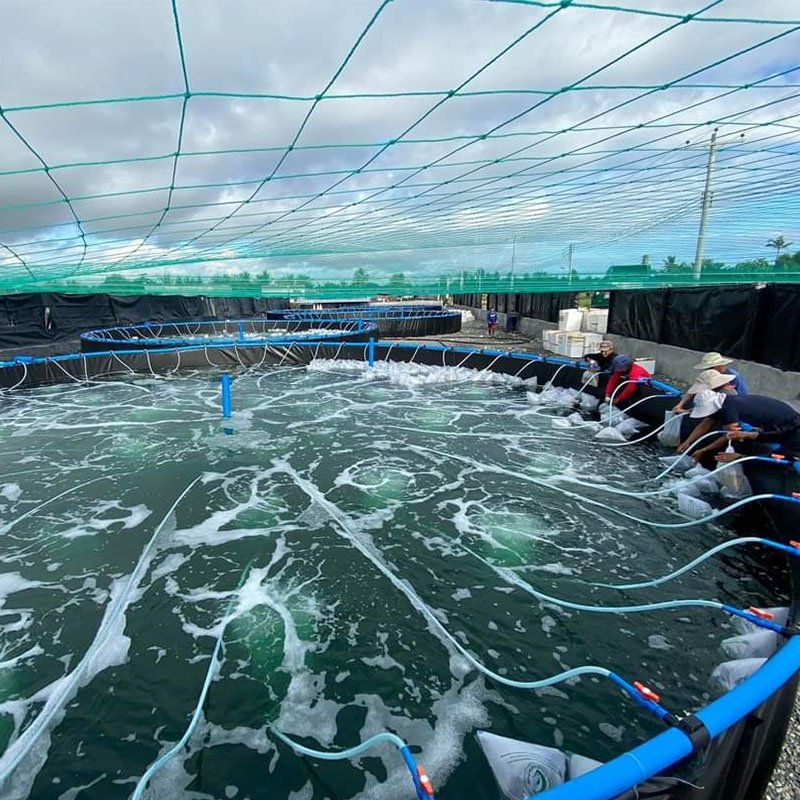

AeroTube Work Principal

AirMMax aerotube is microporous nano bubble aerotube and aeration hose, which release fine bubble uniformly from microporous wall of aerotube at the bottom of aquaculture pond.

Roots blower supply clean air through pipe to aerotube and clean air pass through aerotube wall and transform into fine bubble, fine bubble rise slowly from the pond bottom to the surface which makes fine bubble have higher surface contact area and longer contact period with water, which ensure oxygen of fine bubble efficiently dissolved into the water, under the oxygen dissolution process, dissolved oxygen effect is remarkable and dramatically improve the oxygen content in the water.

AeroTube Advantage

Dissolved oxygen is one of the most important parameters in water quality management that farmers will track daily. Excellent dissolved oxygen is necessary for good water quality and shrimp health. AirMMax aerotube efficiently dissolve oxygen into the water and improve dissolved oxygen in the water.

Efficient Dissolved Oxygen

AirMMax aerotube release fine bubble uniformly from microporous wall of aerotube at the bottom of aquaculture pond, fine bubble rise slowly from the pond bottom to the surface which makes fine bubble have higher surface contact area and longer contact period with water, which ensure oxygen of fine bubble efficiently dissolved into the water.

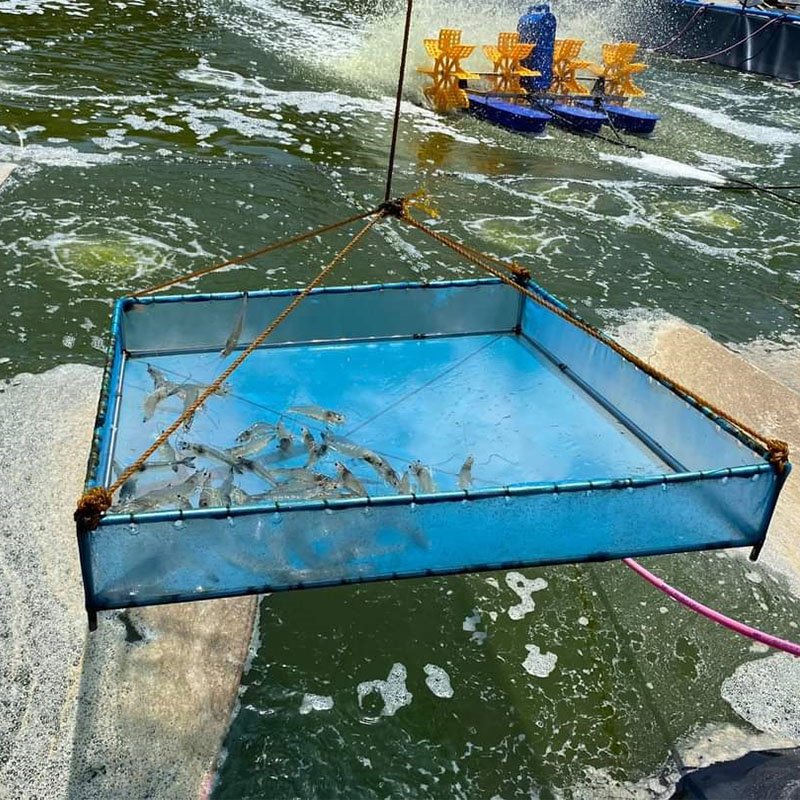

High Shrimp Productivity

AirMMax aerotube is designed for high density shrimp aquaculture and fish aquaculture, high dissolved oxygen in the pond allows shrimp and fish stay alive and energetic to eat more feeds and ensure faster growth and satisfactory feed conversion ratios (FCR), it also improve the quality of water environment and improve shrimp and fish health.

Plug and Play

AirMMax aerotube is easy to installed and put at the bottom of pond when your pond is HDPE liner pond, we recommend you use our frame type air diffuser, meanwhile you can tie the aerotube on any heavy things like steel bar, bamboo tied with stone, brick, concrete block etc based on your site situation. If used for mud shrimp pond, aerotube should be put above the mud surface.

Easy Maintenance

AirMMax aerotube is easy to be maintained when it is clogged, water cannon is recommended to blast onto the outer wall of aerotube.

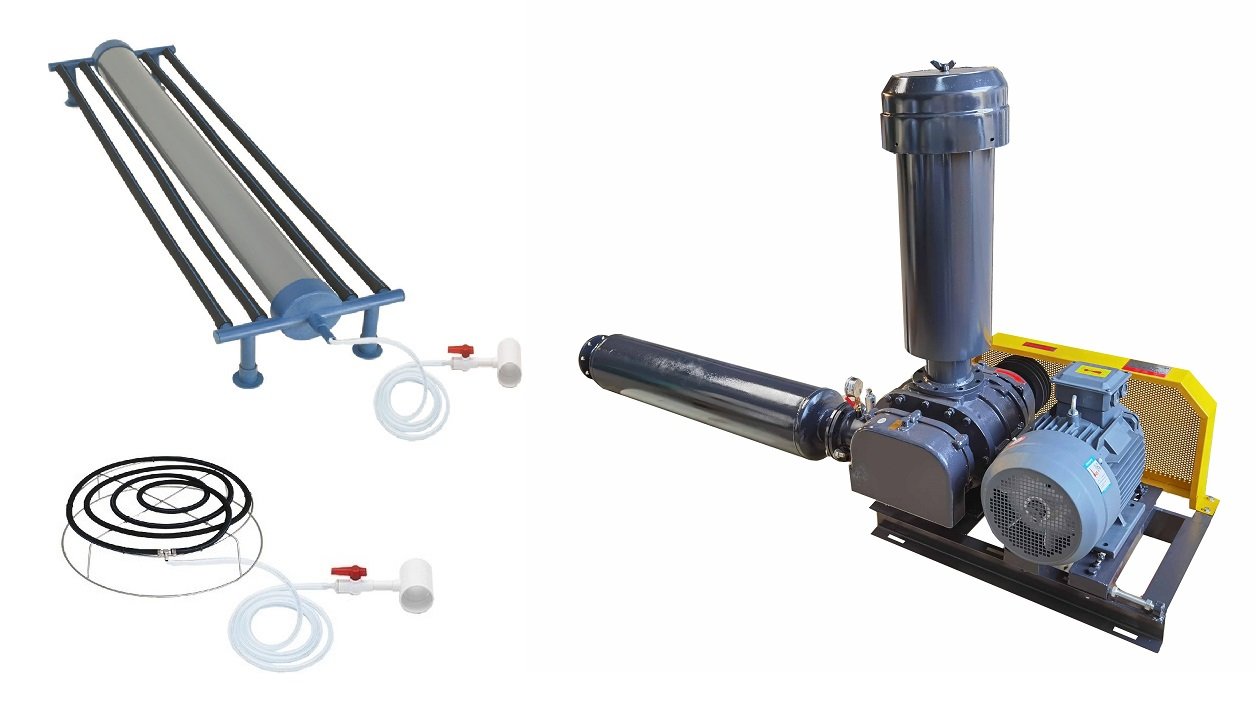

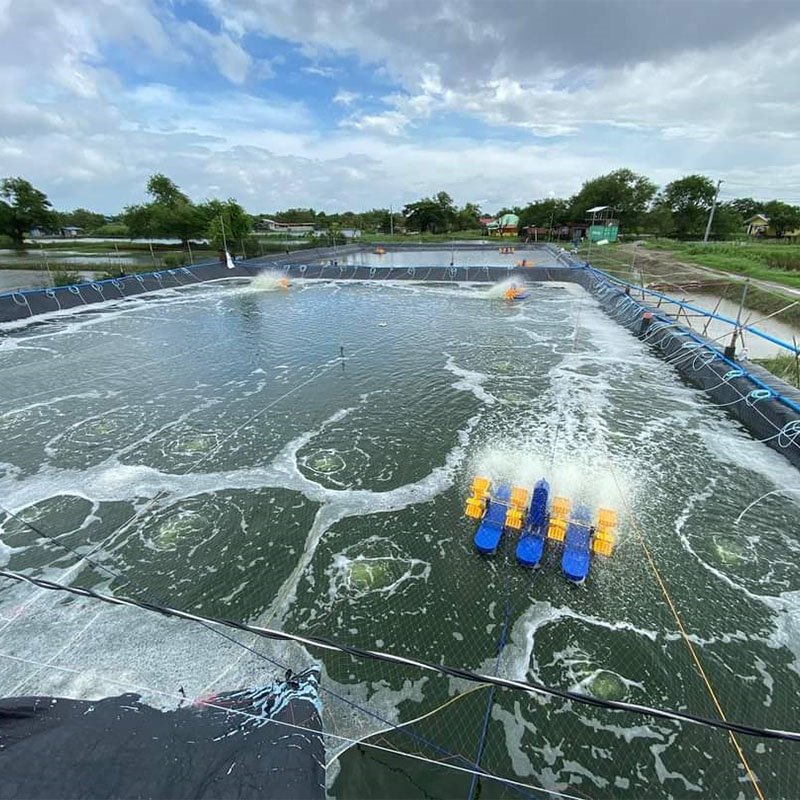

Aeration System

AirMMax is professional manufacturer of aerotube, roots blower and turbo blower aerator and has developed into an aquaculture solution provider together by supplying aeration hose and connector in aeration system design and installation.

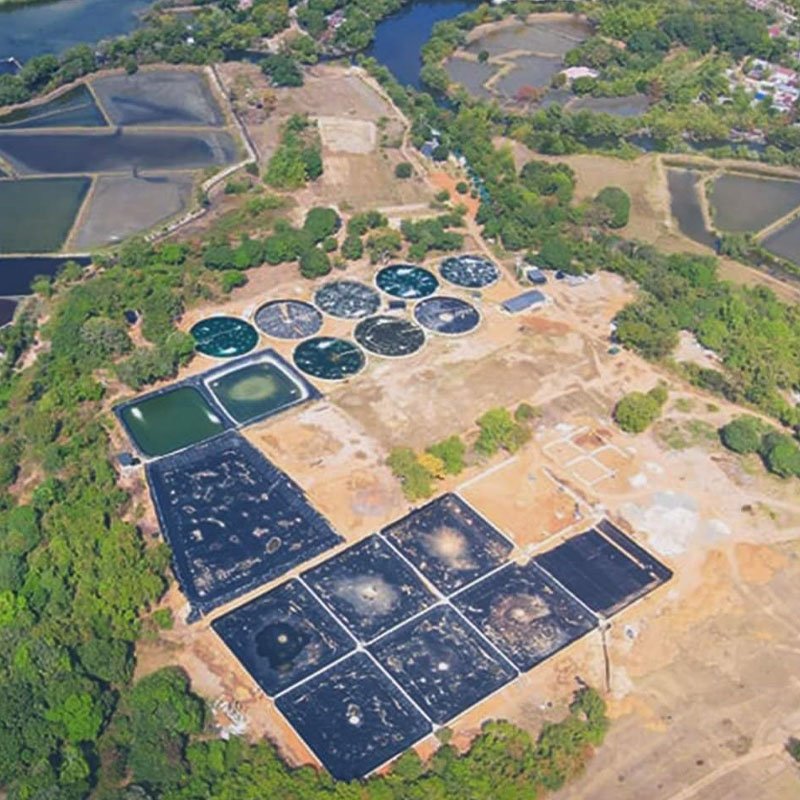

Site Installation

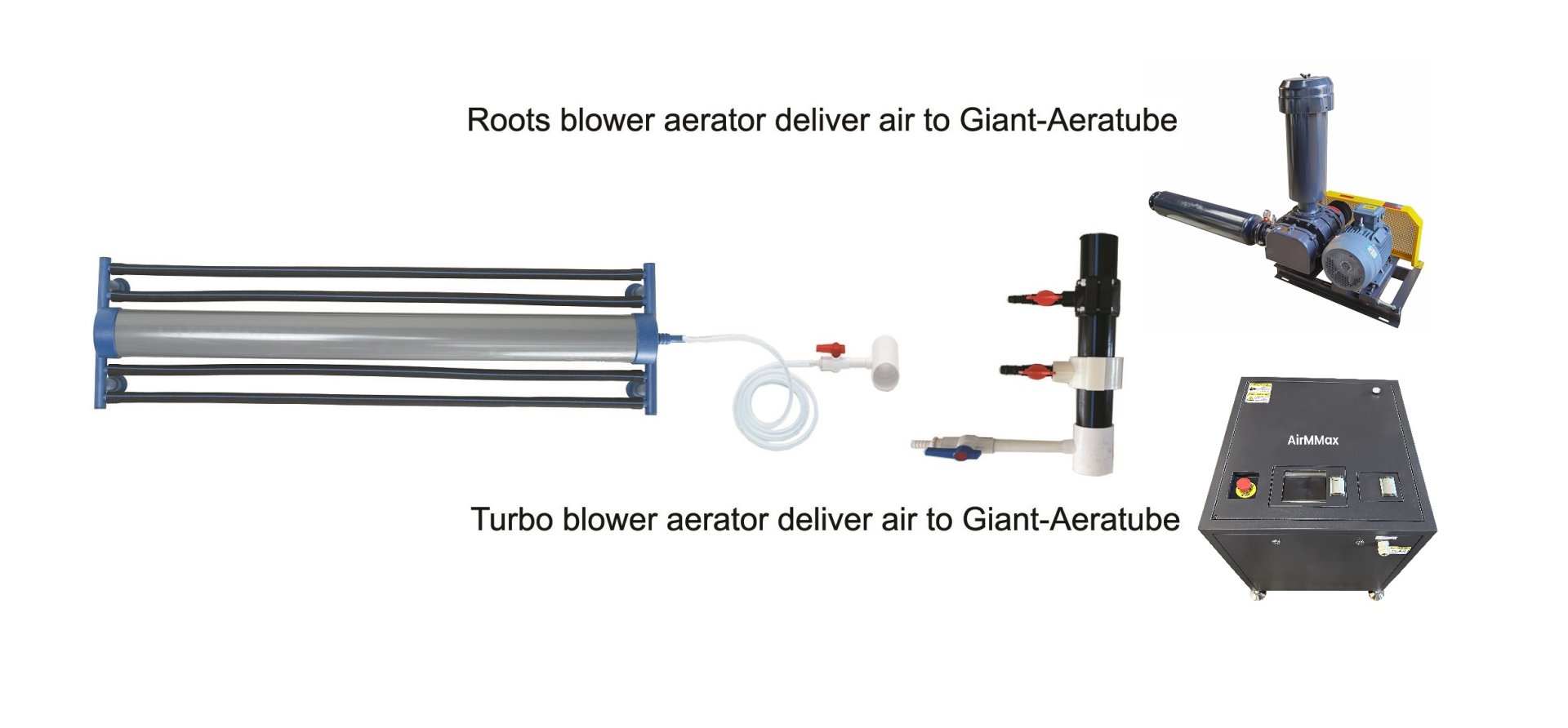

AirMMax Giant-Aerotube work as the frame for aerotube, which is an easy way to install aerotube in your shrimp pond.

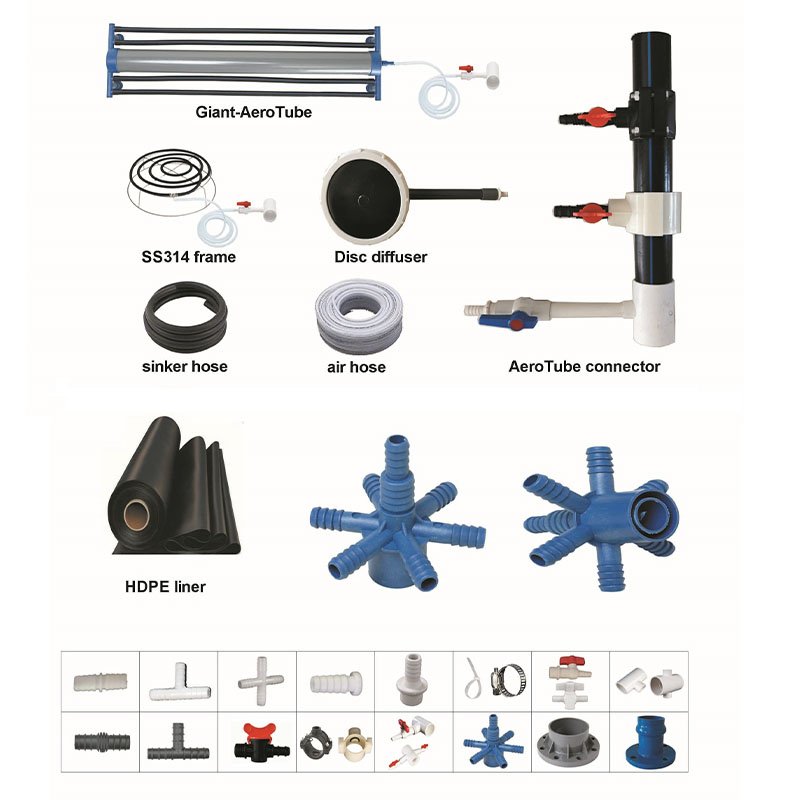

AirMMax Spare Parts

AirMMax spare parts is designed to match AirMMax manufactured AeroTube, roots blower and turbo blower aerator, its simple structure make AirMMax AeroTube easily assembly and disassembly and better aeration performance, AirMMax spare parts will save your time for shrimp farming aeration system together with AirMMax Roots Blower Aerator and Turbo Blower Aerator.

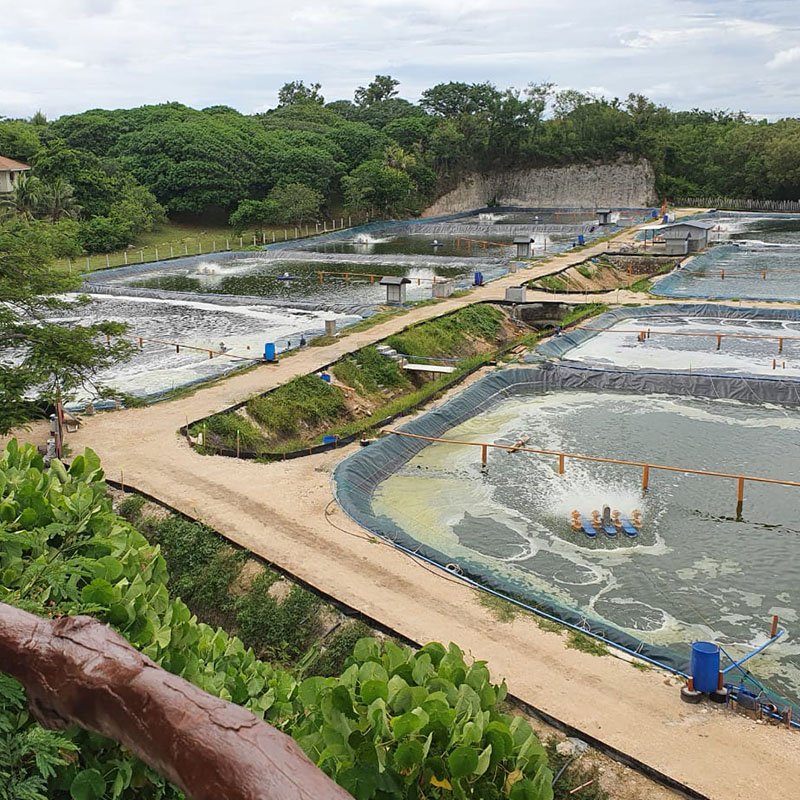

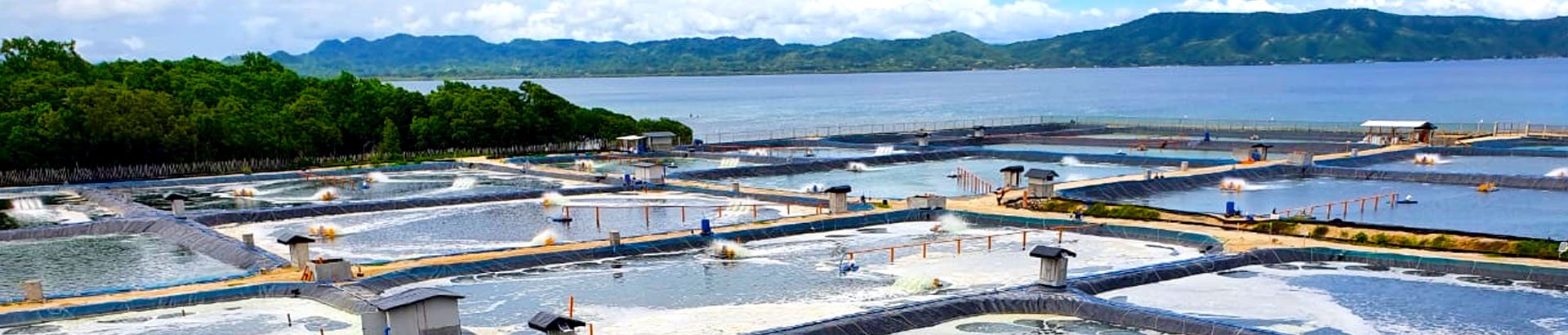

AirMMax Site Application

AirMMax has good knowledge and rich experience about the aquaculture farm condition in various countries and has implementation of hundreds of thousands of hectares aquaculture farm projects both in China and abroad.
